How Do Water Coolers Work?

Water coolers come in several types, from bottled units to coolers plumbed into the water supply. You can buy compact countertop models or full-size freestanding dispensers, and some can also dispense hot or sparkling water.

Bottled Water Coolers

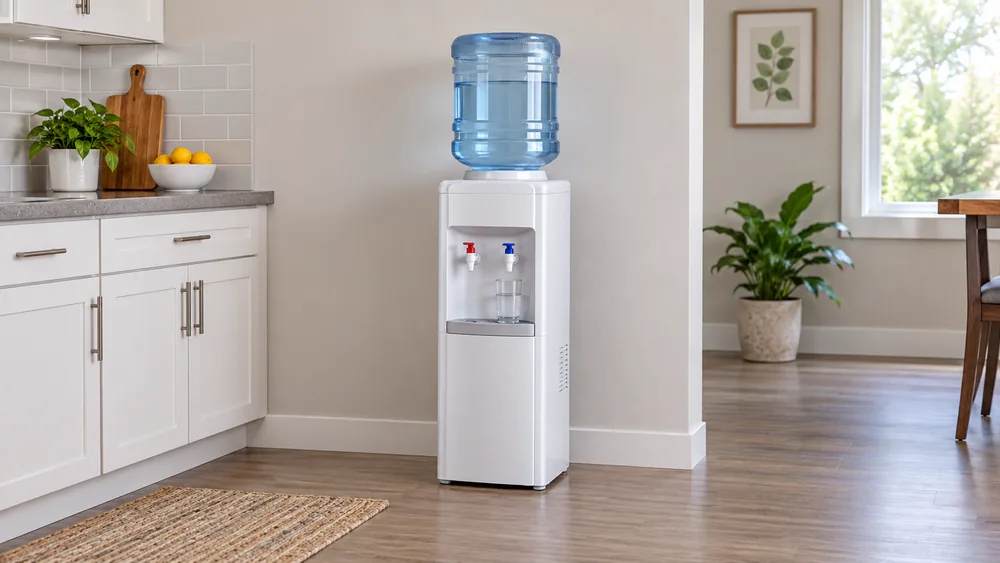

A bottled water cooler holds a large bottle of purified water upside down on top of the unit. Gravity feeds the water into an internal reservoir, where a refrigeration system chills it to the set temperature. You dispense the chilled water from a tap, and many models add a heated reservoir for hot water.

Bottleless Water Coolers (Plumbed-In/Point-of-Use Dispensers)

A bottleless cooler connects to the building’s water line, so it has a constant supply of chilled water and, in most models, hot water too. It draws from the mains and cleans the water with built-in filtration such as carbon or reverse osmosis. Compared with bottled water, it costs less over time, cuts plastic waste and removes the need to order, lift and store bottles.

Bottom-Load Water Coolers

A bottom-load cooler has a cabinet at the base where the full bottle sits upright. Instead of relying on gravity like a top-load model, it uses an internal pump to draw water up from the bottle into the reservoir and out to the tap. You never have to lift and flip a heavy bottle, which is much easier on your back.

Bottom-loaders are also tidier. The cabinet conceals the bottle and leaves the top of the unit clear, while bottle changes are less likely to cause spills.

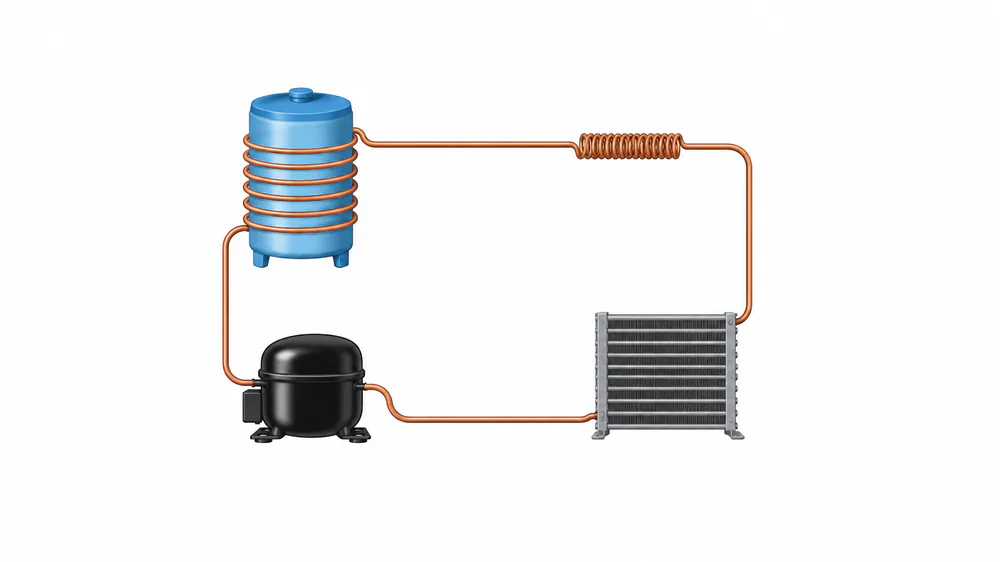

Most water coolers chill water with a compressor and the same refrigeration cycle a household fridge uses. Here’s that cycle, step by step.

1. Reservoir Setup: Water flows into the cooler’s cold reservoir, a small insulated tank wrapped in coils that carry refrigerant.
2. Compression: The compressor squeezes the refrigerant gas, raising its pressure and temperature.
3. Condensation: The hot refrigerant passes through the condenser, where it releases heat into the room and condenses into a liquid.
4. Expansion: The liquid refrigerant flows through an expansion valve, and its pressure and temperature drop sharply.
5. Evaporation: The cold refrigerant enters the evaporator coils, absorbs heat from the water in the reservoir and cools it.
6. Cycle Repeat: The refrigerant returns to the compressor, and the cycle repeats until the water reaches the set temperature.

The Water Flow Mechanism

Water reaches the tap in different ways depending on the type of cooler.

Gravity draws water from the inverted bottle into the internal tank, while air bubbles entering the bottle equalize the pressure and maintain a steady flow. Pressing the lever opens a valve and gravity pushes the water out. Some models use a small electric pump instead.

A plumbed-in cooler is connected directly to the building’s water line, and mains pressure refills its internal tanks. When you press the button, a valve opens (usually an electrically operated solenoid valve) and water flows to the spout. Some models also use a small pump.

The Water Cooling System

Compressor-Based Cooling (Like Refrigerators)

In short, refrigerant circulates through a closed loop. The compressor raises the pressure and temperature of the refrigerant gas, and in the condenser that hot gas gives off heat and turns into a liquid.

The liquid then passes through an expansion valve, where its pressure drops and it becomes very cold. In the evaporator it absorbs heat from the water and turns back into a gas, then returns to the compressor to start the cycle again.

Thermoelectric Cooling (Peltier Effect)

A thermoelectric cooler uses a Peltier module: when current flows through it, one side gets cold and the other gets hot. A heat sink, usually with a small fan, carries heat away from the hot side, while the cold side draws heat out of the water.

With no compressor or refrigerant, the system is compact and quiet, but it is less energy-efficient than compressor cooling at the same capacity.

Filtration & Purification (For Bottleless Coolers)

Carbon filters improve taste and odor by adsorbing chlorine and organic compounds. Reverse osmosis (RO) filters push water through a semi-permeable membrane that removes dissolved solids and microorganisms. Ultraviolet (UV) systems disinfect water by inactivating bacteria and viruses.

Together, these stages remove most contaminants, improve flavor, reduce health risks and protect the cooler’s internal parts from scale and sediment. The result is cleaner, safer, better-tasting water.

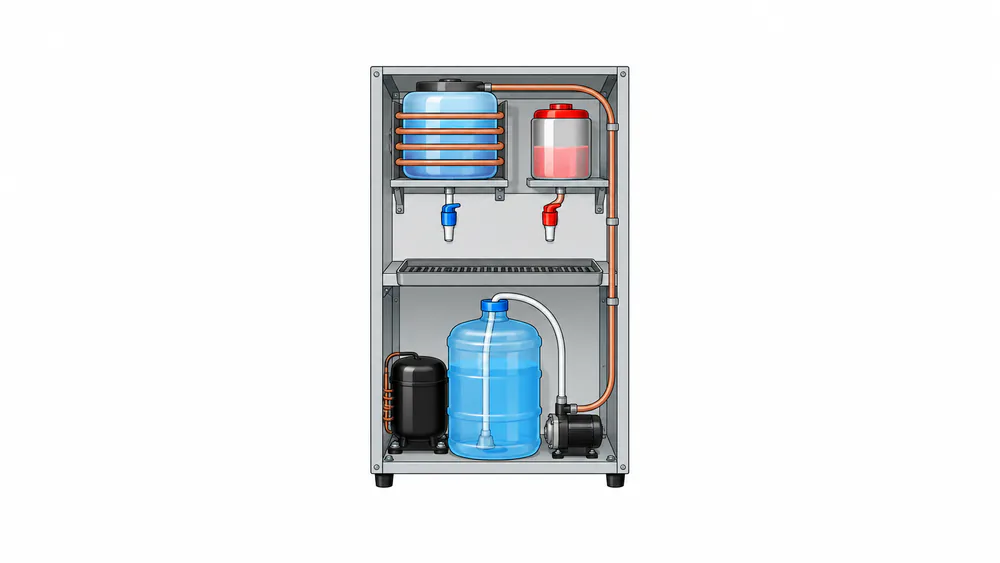

• Water Reservoir: The main tank that holds water before it is dispensed. Bottled coolers fill it from the inverted bottle; bottleless models fill it with filtered tap water. Insulation keeps the water at temperature.
• Cooling Coil/Compressor: The core of a refrigeration-based cooler. The compressor pressurizes a refrigerant that flows through coils around the cold water reservoir, and the refrigerant absorbs heat from the water as it evaporates.
• Heating Element: In models with hot water, a separate tank heats water to the set temperature with an electric resistance element.
• Thermostat: The thermostat monitors water temperature and switches the compressor and heating element on and off to hold the preset cold and hot temperatures.
• Spout/Nozzles: Water comes out through spouts or nozzles, usually with separate lines for hot and cold. You operate them with a push lever, a button or a faucet.
• Drip Tray: Sitting below the spouts, the drip tray catches spills and drips, and it pulls out for cleaning.
